How to Read an Exhibition Floor Plan Before You Design Your Stand

A stand number and a pair of dimensions look like a complete brief. They rarely are. Two spaces with the same floor area can need quite different layouts, depending on which edge faces the aisle, where visitors approach and what sits next door. Reading the organiser's plan properly saves you designing a booth that faces the wrong way.

Start with frontage and depth

Write down the width along the aisle and the depth running into the stand. Do not rely on the order of the numbers in an email or catalogue. A space described as 3 m × 6 m might have a 6 m frontage, but that needs confirming on the actual booking. Add an arrow showing the main approach and label each dimension on the drawing you send your supplier.

Mark every open side

An inline stand usually has one open frontage, while a corner opens onto two aisles. A peninsula has three open sides and an island has four. Check the booked configuration rather than guessing from a small thumbnail. A wall that gives you useful graphic space on an inline stand may close off an important entrance on an island. Mark the neighbouring stand boundaries too.

Read the space around your space

Look for aisle junctions, entrances, theatres, catering areas and other features that might affect how people arrive. These are clues for planning, rather than a promise of visitor numbers. A busy junction may call for a clear place to pause inside the stand. A long approach may make a side-facing message useful. Keep demonstrations and queues within your own booked area.

Find the details that change the usable footprint

Ask whether columns, service cupboards, floor pits or other fixed features affect the space. Confirm any shell-scheme walls and the dimensions inside them. Nominal stand size and the finished space available for your display are not always identical. If something is unclear, send the organiser a marked-up image with the question on it instead of passing an assumption down the chain.

Put real objects on the plan

Add the counter, chairs in use, products, screen and storage at their actual sizes. Then draw the people: someone demonstrating, someone watching and someone entering while a meeting is underway. A rectangle that fits on paper may leave very little working room once the team arrives. Leave yourself a practical route to replenish stock without walking through the centre of a conversation.

Keep one confirmed version

Save the latest organiser plan with the event name, stand number and revision date. Put the agreed frontage, depth and open sides in the written brief as well. If the organiser moves your stand, check the orientation again before approving artwork or equipment. A change across the aisle can reverse the entire layout even when the dimensions stay the same.

Have a floor plan but need help turning it into a working booth? Browse our exhibition stand bundles or send us your event and stand details.

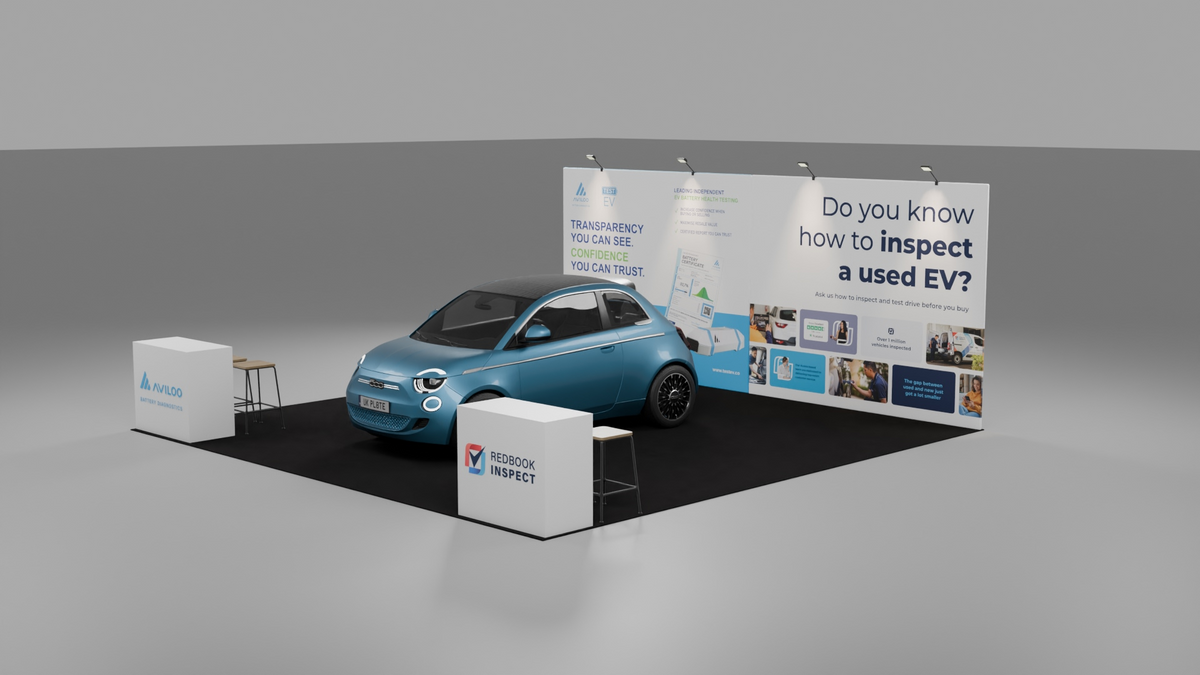

Stand design by The Easy Booth. View the Test EV exhibition project.
